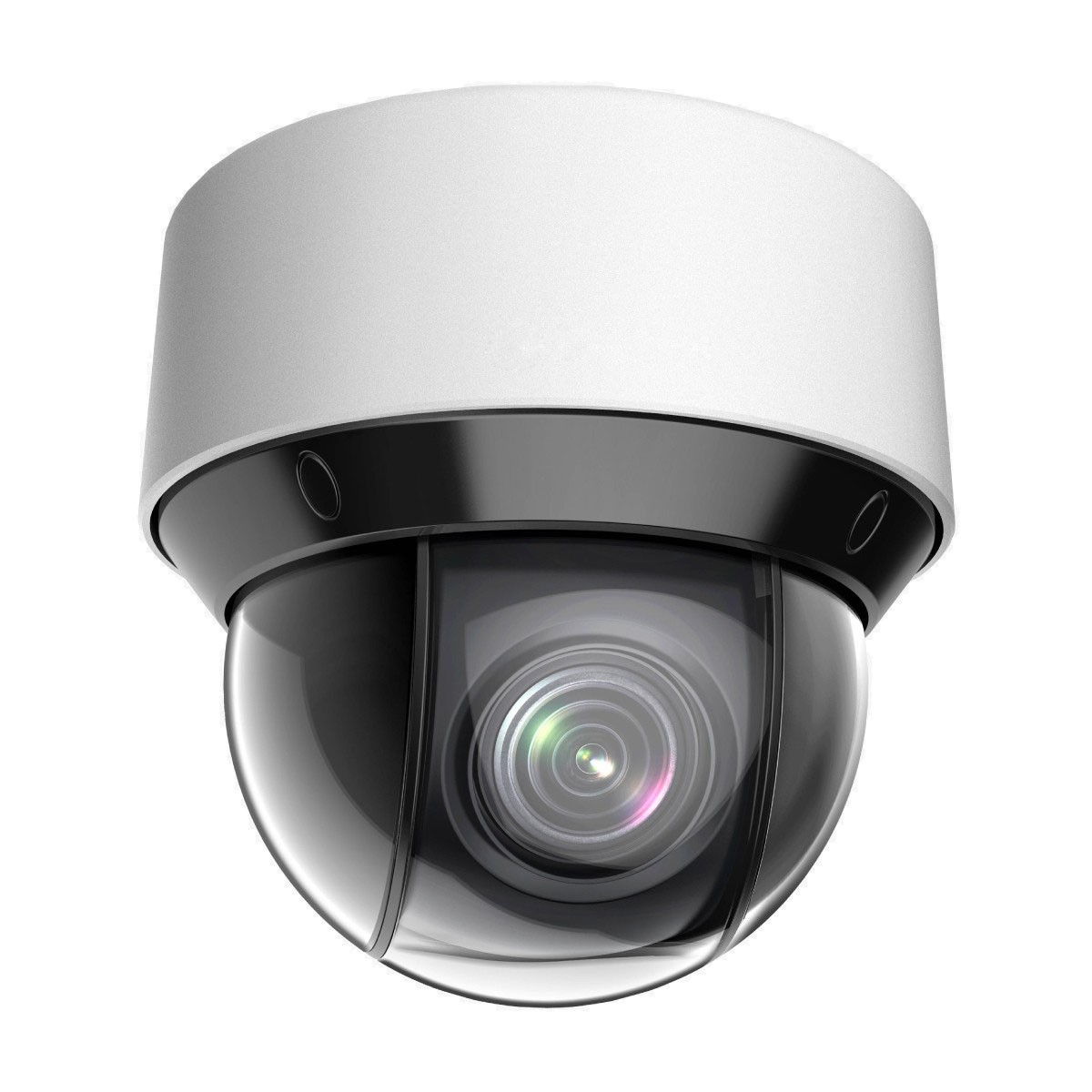

NP1A12-IR/25x 2Mp 25X H.265 Full HD Network IR PTZ Surface Mount Dome Camera

Product Overview

NP1A12-IR/25x delivers professional-grade full HD imaging and versatile PTZ capabilities for critical security applications. Its 1/2.8″ progressive scan CMOS sensor provides sharp 1920 × 1080 resolution, capturing clear details in both day and night conditions. With a 25× optical zoom and 16× digital zoom, operators can monitor distant objects without losing clarity. The camera includes 120 dB WDR, HLC, BLC, and 3D DNR for optimized image quality under challenging lighting. IR illumination reaches up to 50 m, supporting reliable 24/7 surveillance. Multi-stream capability allows flexible network deployment, while intelligent detection features, including line crossing and intrusion detection, enhance proactive security. IP66 housing with surge and lightning protection ensures reliable outdoor performance.

Key Features

• Full HD 2 MP Imaging: Captures detailed scenes with a 1/2.8″ progressive scan CMOS sensor, delivering crisp 1920 × 1080 resolution for precise surveillance.
• Extended PTZ Control: 25× optical and 16× digital zoom provide accurate focus on subjects across large areas, combined with smooth pan/tilt operation.
• Advanced Image Optimization: 120 dB WDR, HLC, BLC, and 3D DNR reduce glare and enhance clarity in high-contrast or low-light environments.
• Reliable Night Surveillance: Up to 50 m IR illumination ensures visibility in complete darkness without compromising image quality.
• Intelligent Event Detection: Supports audio exception detection, face detection, intrusion detection, line crossing, and region entrance/exit monitoring.
• Multi-Stream Efficiency: H.265+/H.265 compression with ROI encoding optimizes bandwidth and storage while maintaining video quality.
• Robust Outdoor Protection: IP66-rated housing with TVS 4000 V lightning, surge, and voltage transient protection ensures safe operation in extreme conditions.

Key Specifications

• 1/2.8″ progressive scan CMOS
• Up to 1920 × 1080 resolution
• Min. illumination:
• Color: 0.005 Lux @(F1.6, AGC ON)
• B/W: 0.001 Lux @(F1.6, AGC ON)
• 0 Lux with IR
• 25× optical zoom, 16× digital zoom
• 120 dB WDR, 3D DNR, HLC, BLC
• Up to 50 m IR distance
• 12 VDC & PoE+ (802.3 at, class4)
• Support H.265+/H.265 video compression
