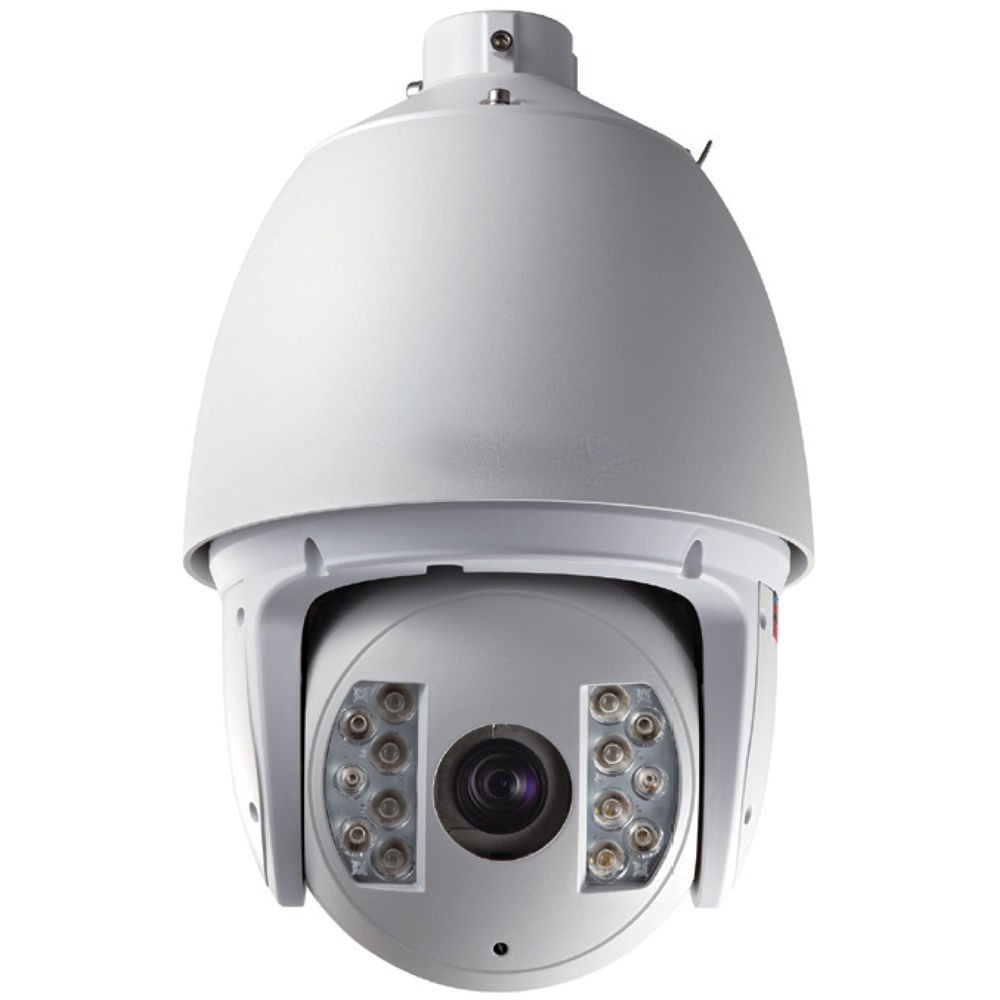

NP302A-IR/30X 2 Megapixel Network Low Temperature IR Speed Dome
2 Megapixel Network Low Temperature IR Speed Dome
- Featuring 30× optical and 16× digital zoom, it delivers precise monitoring across wide areas.
- True day/night functionality combined with 3D DNR and digital WDR ensures clear imaging in challenging lighting conditions.
- Smart IR technology extends night visibility up to 120 m.
- Supports advanced features like smart tracking, ROI encoding, and defog.
- Flexible power options include 24 VAC and High-PoE for versatile installations.
Description
Product Overview
NP302A-IR/30X provides robust surveillance capabilities for outdoor and industrial settings with extreme temperature requirements. Its 1/2.8″ progressive scan CMOS sensor captures sharp 2 MP resolution imagery, ensuring critical details are not missed. The 30× optical zoom paired with 16× digital zoom allows precise monitoring of distant targets, while digital WDR, 3D DNR, and smart IR maintain clarity under strong backlight or low-light conditions. True day/night functionality provides continuous monitoring, and smart tracking enables automatic following of moving objects. Additional intelligent features include ROI encoding and defog for enhanced image quality. The camera supports 3 video streams for multi-platform viewing and is compatible with both 24 VAC and High-PoE power supplies. Ideal for environments where temperature extremes and demanding operational conditions are present.
Key Features
- High-Definition 2 MP Imaging: 1/2.8″ progressive scan CMOS delivers crisp 1920 × 1080 resolution for accurate surveillance.
- Extended PTZ Coverage: 30× optical and 16× digital zoom provide detailed views over long distances.
- Intelligent Tracking & ROI: Smart tracking automatically follows moving objects; ROI encoding optimizes bandwidth for areas of interest.
- Superior Low-Light Performance: True day/night operation with 3D DNR and digital WDR ensures clear imaging in variable lighting conditions.
- Long-Range Night Vision: Smart IR enables up to 120 m IR coverage for expansive night monitoring.
- Defog Capability: Enhances image clarity in foggy or adverse weather conditions.
- Flexible Power Options: Supports 24 VAC and High-PoE, allowing versatile deployment in various infrastructures.
Key Specifications
- 1/2.8″ progressive scan CMOS
- 30x optical zoom, 16x digital zoom
- Smart tracking, defog, ROI encoding, HLC
- Smart IR, 393.7′ IR distance 3-streams
- True day/night, 3D DNR, digital WDR
- 3D intelligent positioning
- 24 VAC / High-PoE power supply
Additional information
| Alarm Input |
7 inputs |
|---|---|
| Alarm Output |
2 relay outputs ,alarm response actions configurable |
| Alarm Trigger |
Face detection ,Intrusion detection ,Line crossing detection ,Region entrance ,Region exiting ,Audio exception detection ,Motion detection ,Audio Exception Detection ,Dynamic analysis ,Tampering alarm ,Network disconnect ,IP address conflict ,Storage ex |
| Angle of view |
65.5-2.11 degree (Wide-Tele) |
| Aperture range |
F1.6-F5.0 |
| Application programming |
Open-ended API ,support Onvif ,PSIA and CGI |
| Audio Compression |
G.711/G.726/MP2L2 |
| Audio Input |
1 Mic in/Line in interface ,Line input: 2 ~ 2.4V[p-p]; output impedance: 1KΩ ,±10% |
| Audio Output |
1 Audio output interface ,Line level ,impedance: 600Ω |
| Automatic Gain Control |
Auto / Manual |
| Client |
iVMS-4200 |
| Communication Interface |
Open-ended API ,support ONVIF(Profile G) ,ISAPI ,and CGI Support Genetec |
| Day & Night |
IR Cut Filter |
| Digital Noise Reduction |
3D DNR |
| Dimensions |
Φ245 × 399mm (Φ9.65" × 15.71") |
| Effective Pixels |
2230K pixels |
| Ethernet |
10Base-T / 100Base-TX ,RJ45 connector |
| Focal Length |
4.3-129mm ,30x |
| Focus Control |
Auto / Semiautomatic / Manual |
| Frame Rate |
50Hz: 25fps(1920 × 1080) ,25fps (1280 × 960) ,25fps (1280 × 720) 60Hz: 30fps(1920 × 1080) ,30fps (1280 × 960) ,30fps (1280 × 720) |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Ingress Protection |
IP66 (outdoor) ,TVS 4 ,000V lightning protection ,surge protection and voltage transient protection |
| IR Range |
Up to 150 m |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color : 0.3 lux (F1.6 ,1/30 sec ,50 IRE ,AGC On) B/W : 0.02 lux (F1.6 ,1/30 sec ,50 IRE ,AGC On) 0 lux with IR Color : 0.02 lux (F1.6 ,1/1 sec ,50 IRE ,AGC On) B/W : 0.002 lux (F1.6 ,1/1 sec ,50 IRE ,AGC On) 0 lux with IR |
| Min. working distance |
10-1500mm(Wide-Tele) |
| Number of preset |
300 |
| On-Board Storage |
Built-in SD/SDHC Slot ,up to 32GB ,support manual / alarm / edge recording |
| Operating Conditions |
-A: -30°C ~ 65°C(-22°F ~ 149°F) -AEL: 24 VAC: -40°C ~ 65°C (-40°F ~ 149°F) / High-PoE: -30°C ~ 65°C (-22°F ~ 149°F) |
| Operating Humidity |
90% or less |
| Pan / Tilt range |
Pan: 360° endless; Tilt: -2° ~ 90°(Auto Flip) |
| Pan / Tilt speed |
Pan manual speed: 0.1° ~ 160°/s ,Pan preset speed: 160°/s Tilt manual speed: 0.1° ~ 120°/s ,Tilt preset speed: 120°/s |
| Park action |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| Patrol |
8 patrols ,up to 32 presets per patrol |
| Power Supply |
AE: 24VAC/PoE+(802.3at) ,Max18W; -AE3: 24VAC/PoE(802.3af) ,Max 12W |
| Power-off memory |
Support |
| Preset freezing |
Support |
| Privacy Masking |
24 privacy masks programmable ,optional multiple colors and mosaics |
| Proportional zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
| Protocol |
IPv4/IPv6 ,HTTP ,HTTPS ,802.1X ,QoS ,FTP ,SMTP ,UPnP ,SNMP ,DNS ,DDNS ,NTP ,RTSP ,RTP ,TCP ,UDP ,IGMP ,ICMP ,DHCP ,PPPoE |
| PTZ position display |
Support |
| ROI |
Support |
| S/N Ratio |
≥ 50dB |
| Shutter Speed |
50Hz: 1 ~ 1/30 ,000s ,60Hz: 1 ~1/30 ,000s |
| Simultaneous live view |
Up to 20 |
| Smart Tracking |
Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger /Region exiting trigger |
| Video Output |
BNC(1.0Vp-p/75Ω) ,PAL / NTSC |
| Web Browser |
IE 7+ ,Chrome 18+ ,Firefox 5.0+ ,Safari 5.02+ |
| Weight |
Approx. 5.5kg(12.13Ibs |
| White Balance |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| Wide Dynamic Range |
Digital WDR |
| Zoom speed |
Approx.3s(Optical Wide-Tele) |
