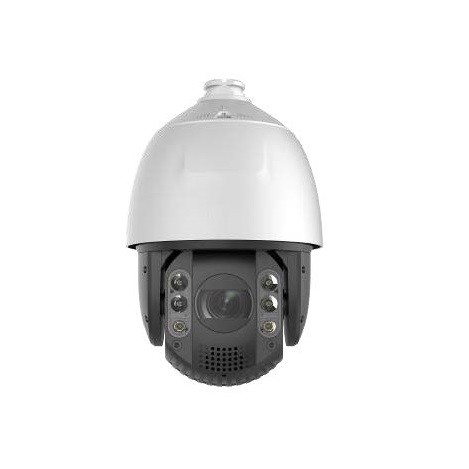

NP358-IR/SL 25X 8 MP Starlight AcuSense 25× IR Network Speed Dome

8 MP Starlight AcuSense 25× IR Network Speed Dome

  • 1/1.8″ progressive scan CMOS
  • High quality imaging with 8 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
  • 25× optical zoom and 16× digital zoom provide close up views over expansive areas
  • Expansive night view with up to 200 m IR distance
  • Focuses on human and vehicle targets classification based on deep learning
  • Face capture: Up to 5 faces captured at the same time
SKU: NP358-IR/SL 25X Category:
Description

Product Overview

NP358-IRSL 25× IR Network Speed Dome adopts 1/1.8″ progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc. Empowered by deep learning algorithms, AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Key Features

  • Ultra-HD 8 MP Surveillance Imaging: Captures highly detailed video at up to 3840 × 2160 resolution using a 1/1.8″ progressive scan CMOS sensor.
  • DarkFighter Low-Light Technology: Delivers excellent image clarity in extremely dim environments for reliable night monitoring.
  • Deep Learning Target Classification: Accurately distinguishes human and vehicle targets to reduce false alarms and improve detection accuracy.
  • High-Precision PTZ Zoom Capability: 25× optical zoom and 16× digital zoom enable detailed observation over large surveillance areas.
  • Extended IR Night Vision: High-performance IR illumination provides up to 200 m of night coverage.
  • Active Deterrence Alarm: Integrated flashing white light and audible alarm can be triggered during security events.
  • Multi-Face Capture & Audio Support: Detects and captures up to five faces simultaneously and includes a built-in speaker for enhanced interaction.



Key Specifications

  • Image Sensor: 1/1.8″ Progressive Scan CMOS
  • Maximum Resolution: 3840 × 2160 (8 MP)
  • Zoom: 25× optical zoom, 16× digital zoom
  • IR Distance: Up to 200 m
  • Protection Rating: IP66, IK10
Additional information
Camera Resolutions

Audio

Built-in Speaker

Camera Style

Max.Resolution

3840×2160

Image Sensor

1/1.8" progressive scan CMOS

Min.Illumination

Color:0.005 Lux@(F1.5

,

AGC ON)

,

B/W:0.001 Lux@(F1.5

,

AGC ON)

,

0 Lux with IR

Shutter Speed

1/1s to 1/30000s

Day & Night

IR cut filter

Zoom

25x optical

,

16x digital

Aperture

Max.F1.5

Video Bit Rate

32 kbps to 16384 kbps

WDR

120 dB

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Power

24 VAC

,

max. 42 W(including max. 18 W for IR and max. 10 W for heater); Hi-PoE

Material

ADC12

Dimension

Ø220 mm×363.3mm(Ø8.66"×13.91")

Weight

Approx. 5 kg (11.03 lb.)

Protection

IK10

,

IP66

Download

Datasheet

No associated firmware documentation found.
