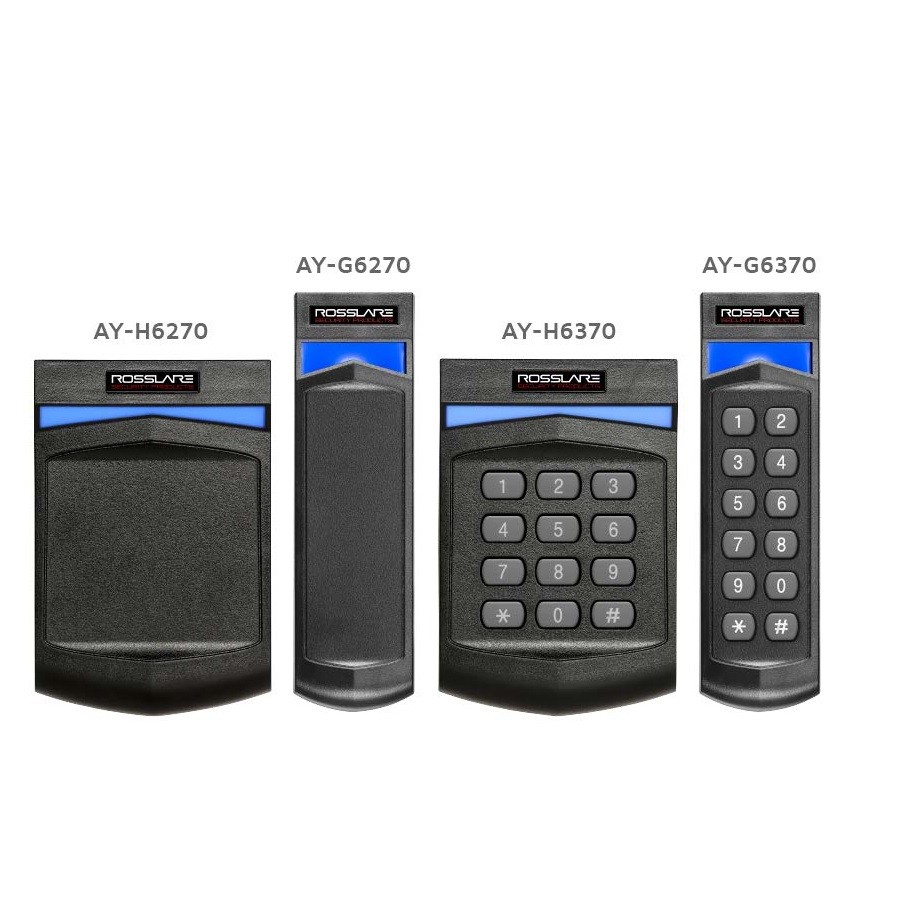

AY-H6270B+P00 AY H SERIES OPEN TO SECURE
SKU:
AY-H6270B+P00
| Operating Voltage Range | 6 to 16V DC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum: 110mA |
| MIFARE Classic ELED ControlV1 MIFARE Plus | 40 to 45mTwo Inputs: Green LED CTL and RED LED CTL–TTLm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Output Format | O2S-Preprogrammed key (per format on O2S credential) Custom-Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized 1 Keypad: Four user-selectable standard formats available |
| Maximum Cable Distance to Controller | Wiegand:150m (500ft) with18-AWG cable OSDP(RS-485):1200m (4,000ft) with 2×218-AWG twisted shielded cable |
| Compatible Cards | MIFARE Plus X/S(2K,4K) and MIFARE EV1 Classic(1K,4K) |
| Operating Temperature | -31ºC to 63ºC(-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| Dimensions of Pigtail Models (H x W x D) | 120.0 x 80.0 x 23.0 mm (4.7 x 3.2 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) | 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.) |
| Weight | 217 g (7.7 oz) |

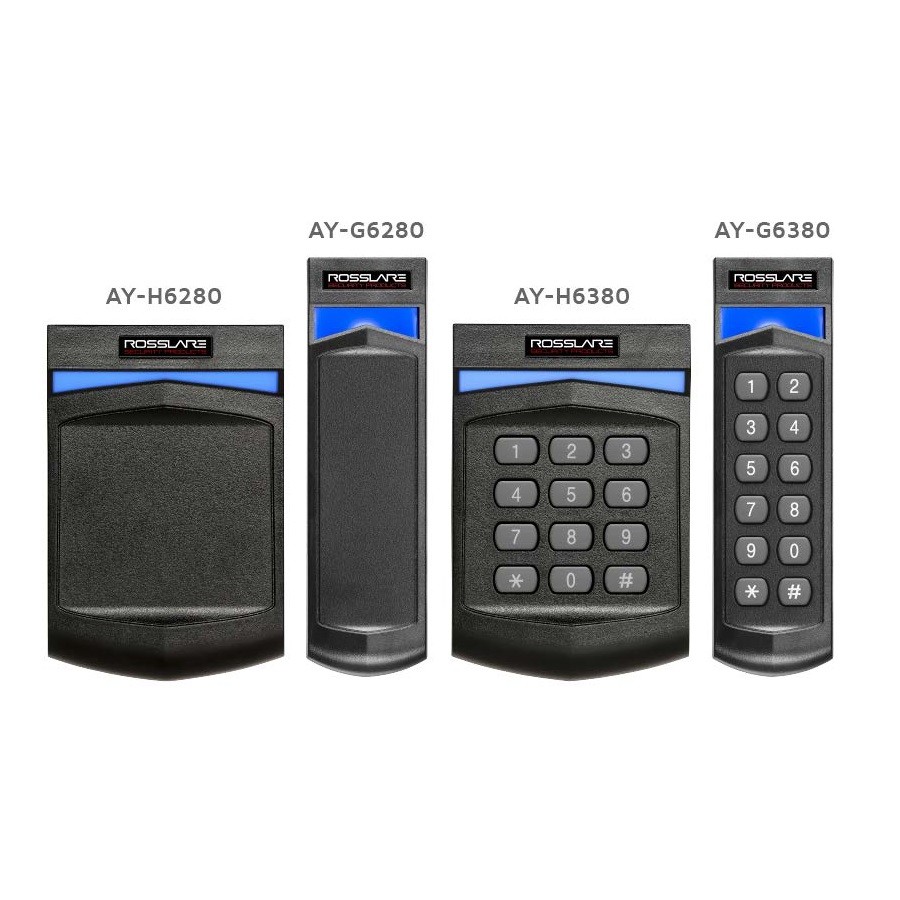

AY-H6280B+P00 02S MIFARE DESFIRE EV1 SMARTCARD READER
SKU:
AY-H6280B+P00
| Operating Voltage Range | 6 to 16 VDC |
|---|---|
| Input Current at 12V | Stand by: 85mA, Maximum:110mA |
| Read Range (secure credential memory) | MIFARE Classic EV1: 40 to 45 mm (1.5 to 1.8 in.) MIFARE DESFire EV1: 25 mm (1 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL–TTL |
| Auxiliary Input | Buzzer CTL or Hold CTL–TTL |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30mA) |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
| Secured Communication | OSDP V2 including secure channel AES 256-bit symmetric data encryption |
| Maximum Cable Distance to Controller | Wiegand:150m (500 ft) with18-AWGcable OSDP(RS-485):1200m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Compatible Cards | MIFARE DESFireEV1 (2K, 4K, 8K, and MIFAREEV1 Classic (1K, 4K) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
