Product Overview

The NR21P6-16/D is a 1U 16-channel NVR engineered for medium-scale surveillance applications, offering high-definition recording with multi-format support including H.265+ for reduced storage consumption. It handles up to 160 Mbps incoming bandwidth, with decoding capability for 1 channel at 8 MP, 3 channels at 4 MP, or 6 channels at 1080p. The recorder integrates 16 PoE ports for easy camera installation and management, while dual HDMI and VGA outputs—including 4K HDMI output—ensure flexible viewing options. Advanced smart features such as Motion Detection 2.0, line crossing, and intrusion detection provide proactive security monitoring. Equipped with 2 SATA HDD interfaces supporting up to 8 TB per disk, it allows efficient storage expansion, smart search, and smooth playback, making it ideal for offices, retail spaces, and other professional environments.

Key Feature

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth

Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%

HD Video Output

• Provide simultaneous HDMI and VGA outputs
• HDMI video output at up to 4K resolution

Storage and Playback

• 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
• Smart search/smart playback to improve the playback efficiency

Smart Function

• 4-ch Motion Detection 2.0
• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)

Network & Ethernet Access

• 16 independent PoE network interfaces
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
• Guarding Vision for easy network management

Product Overview

The NR21P8-8/D is a 1U 8-channel NVR providing high-definition 4K recording with multi-format video compression including H.265+ for optimized storage. It features 8 PoE ports for simplified camera installation and network management. The recorder supports up to 2 SATA HDDs, each up to 8 TB, and smart search/smart playback for efficient footage review. Advanced analytics such as Motion Detection 2.0, line crossing, and intrusion detection enable proactive security measures. With simultaneous HDMI and VGA outputs—HDMI up to 4K resolution—the NVR ensures clear, flexible monitoring. This model is tailored for small to medium surveillance networks requiring reliable, feature-rich solutions.

Key Features

Professional and Reliability

•  H.265+ compression effectively reduces the storage space by up to 75%

HD Video Output

• Provide simultaneous HDMI and VGA outputs
• HDMI video output at up to 4K resolution

Storage and Playback

• 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
• Smart search/smart playback to improve the playback efficiency

Smart Function

• 4-ch Motion Detection 2.0
• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)

Network & Ethernet Access

• 8 independent PoE network interfaces
• 1 self-adaptive 10/100 Mbps Ethernet interface
• Guarding Vision for easy network management

Product Overview

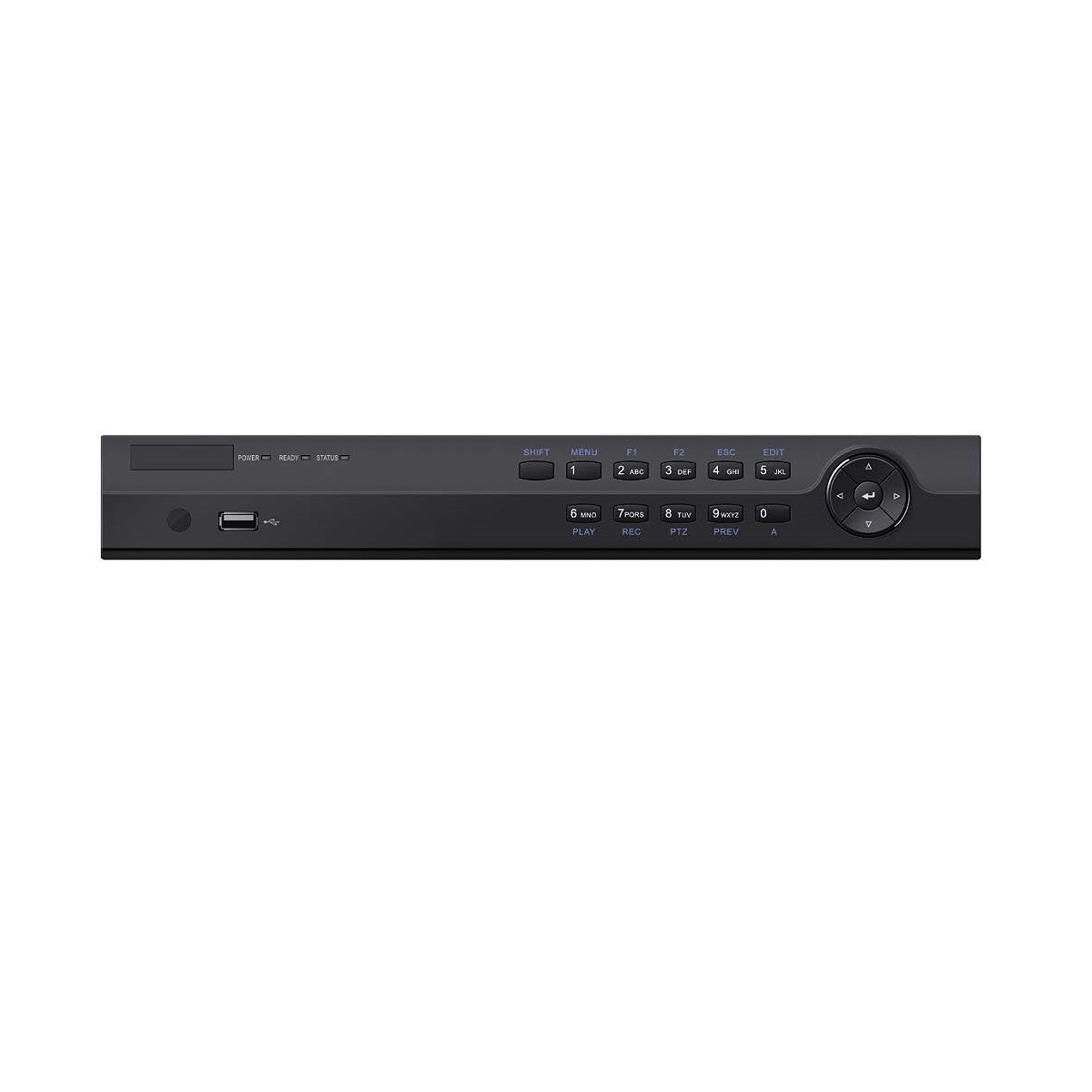

The NR33P8-8/D AcuSense NVR delivers professional 4K monitoring for up to 8 IP cameras. Its 8 PoE ports simplify installation while supplying power to cameras directly through Ethernet. With flexible decoding options, it can handle up to 12 MP video streams for high-detail surveillance. AcuSense technology enables human and vehicle detection to reduce false alarms and streamline security operations. Facial recognition is supported on one video stream or up to four face images simultaneously. Smart search and playback functions allow quick retrieval of events. Supporting H.265+/H.265/H.264+/H.264 formats, this recorder balances storage efficiency and video quality for offices, retail, or residential monitoring.

Key Features

• 8 PoE Channels: Plug-and-play IP camera connectivity with power supplied via Ethernet.
• Flexible Decoding: Supports 12 MP, 8 MP, 4 MP, and 1080p video streams.
• AcuSense AI Analytics: Human and vehicle detection reduces false alarms.
• Facial Recognition: 1-channel video stream or 4-channel face image recognition.
• Motion Detection 2.0: Intelligent detection across all channels.
• Smart Search & Playback: Quickly locate events in recorded footage.
• Optimized Bandwidth: Up to 80 Mbps incoming bandwidth for smooth recording.

Key Specifications

• Camera Input: Up to 8 IP channels with 8 PoE ports.
• Video Compression: H.265+/H.265/H.264+/H.264.
• Decoding Capacity: 2-ch @12 MP, 3-ch @8 MP, 6-ch @4 MP, 12-ch @1080p.
• Incoming Bandwidth: Up to 80 Mbps.
• Smart Functions: Motion detection, human & vehicle recognition, facial recognition.

Product Overview

The NR520-32 Embedded M Series NVR provides high-performance 8K surveillance for up to 32 IP cameras. With ultra HD mode enabled, it supports up to 8 channels at 32MP or 24MP resolution, delivering exceptional detail for mission-critical monitoring. The system features H.265+/H.265/H.264+/H.264 compression for optimized storage usage. Simultaneous HDMI1/VGA output with an additional independent HDMI2/VGA port ensures flexible multi-display configurations. Audio input and output support two-way communication. With 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth, the recorder handles high-resolution streams efficiently. Synchronous playback supports 16 channels, and remote connections allow up to 128 users for centralized management.

Key Features

• Ultra HD 8K Monitoring: Supports up to 32MP per channel in ultra HD mode for detailed surveillance.
• Flexible Decoding: Up to 32 channels at 1080p, ensuring smooth playback across all feeds.
• High Bandwidth Management: 320 Mbps incoming and 400 Mbps outgoing bandwidth for reliable performance.
• Multi-display Output: HDMI1/VGA simultaneous output, HDMI2/VGA independent output for flexible viewing.
• Audio & Two-Way Communication: 1-channel audio output with 1-channel two-way audio support.
• Synchronous Playback: Review up to 16 channels simultaneously for efficient event analysis.
• Scalable Storage: 4 HDD support with up to 14 TB per disk.

Key Specifications

• Camera Input: 32 IP channels, up to 32 MP per channel (ultra HD mode).
• Video Compression: H.265+/H.265/H.264+/H.264.
• Decoding Capacity: Up to 32 channels at 1080p.
• Incoming/Outgoing Bandwidth: 320 Mbps incoming, 400 Mbps outgoing.
• HDD Support: 4 SATA drives, up to 14 TB per disk.

Product Overview

The NR52P6-32 AcuSense NVR delivers powerful video management for medium-to-large surveillance deployments. Supporting up to 32 IP cameras with decoding capacity of up to 32 channels at 1080p and 320 Mbps incoming bandwidth, it efficiently handles high-resolution video streams. Built-in PoE interfaces simplify installation by providing both power and data connectivity for cameras. Advanced compression technologies such as H.265+ and dual-stream recording significantly reduce storage requirements while maintaining image quality. Security features including TLS encrypted stream transmission and double verification for playback and downloads help protect system data. The recorder also supports multiple intelligent analytics such as motion detection, intrusion detection, heat map, ANPR, and people counting, while POS overlay enables transaction data to be displayed on live or recorded video for enhanced operational monitoring.

Key Features

Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%
• Dual-stream recording saves bandwidth
• Adopt stream over TLS encryption technology which provides more secure stream transmission service
• Support double verification for playback and downloading

HD Video Output

• Provide independent HDMI and VGA outputs
• HDMI video output at up to 8K resolution
• Dual 4K HDMI output resolution

Storage and Playback

• Up to 4 SATA interfaces for HDD connection
• 16-ch synchronous playback

Smart ＆ POS Function

• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and
  people counting
• POS information overlay on live view and playback, and POS triggered recording and alarm

Network ＆ Ethernet Access

• 16 independent PoE network interfaces
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
• Hik-Connect ＆ DDNS (Dynamic Domain Name System) for easy network management

Smooth streaming technology

• Support web access without plug-in

Product Overview

The NRA20-64 Super Network Video Recorder is engineered for large-scale surveillance deployments requiring high bandwidth and advanced video processing. It supports up to 64 IP camera inputs and delivers powerful decoding performance, including up to 2 channels at 32 MP or multiple channels at 8 MP, 4 MP, and 1080p resolutions. With both incoming and outgoing bandwidth reaching 400 Mbps, the system efficiently handles high-resolution video streams. Multiple display interfaces, including two HDMI and two VGA outputs, provide flexible viewing options with support for 8K or dual 4K display modes. The recorder is compatible with specialized cameras such as people counting cameras, ANPR cameras, and fisheye cameras, enabling advanced analytics and wider monitoring coverage. RAID storage configurations and N+M hot spare functionality enhance data protection and ensure reliable operation in professional security environments.

Key Features

• 64-Channel IP Camera Support: Designed for large surveillance networks with flexible camera integration.
• Ultra-High-Resolution Decoding: Supports up to 32 MP cameras with powerful multi-channel decoding performance.
• High Bandwidth Processing: Up to 400 Mbps incoming and outgoing bandwidth ensures smooth recording and playback.
• 8K / Dual 4K Video Output: Dual HDMI and VGA interfaces support multiple high-resolution display configurations.
• Special Camera Compatibility: Supports people counting, ANPR, and fisheye cameras for advanced monitoring applications.
• Advanced Streaming Technology: Maintains smooth live viewing even in unstable network environments.
• Enterprise Storage Protection: RAID 0/1/5/6/10 and N+M hot spare ensure data integrity and system reliability.

Key Specifications

• IP Camera Input: Up to 64 channels
• Decoding Capacity: Up to 2-ch @ 32 MP or multi-channel decoding at 8 MP / 4 MP / 1080p
• Bandwidth: 400 Mbps incoming / 400 Mbps outgoing
• Video Output: 2 HDMI + 2 VGA, up to 8K or dual 4K display
• Storage Protection: RAID 0/1/5/6/10 with N+M hot spare support
